Aimix recently launched our new type semi trailer concrete mixer which can be easily transport by the trailer. Aimix tractor trailer concrete mixer can be set on the work-site and Immediately start to work with stable performance. It is more cost effective and has larger volume than traditional concrete mixer truck. Aimix tractor trailer concrete mixer will breakthrough in your business transportation of cement, which is Cost Less & Profit More.
Aimix Tractor Trailer Concrete Mixer:
- Effective Volume:14 m³
- Thick Q345 Wear Plate/li>
- Larger capacity with less price than concrete mixer truck
- Wear-resistant protective slats welded to the spirals
- Optional fixed superstructure with a switch system for flexible use
- Trailer chassis are tailored to your needs in our own production plant
- Aimix support customized service & after-sales service.
Technical Parameters of Aimix Semi Trailer Concrete Mixer:
| Technical Parameters of Aimix Semi Trailer Concrete Mixer Truck | |||
| Overall Dimensions(L×W×H): | 6400×2550×3300 mm | Number of Springs: | 10/10/10 |
| Overall weight: | 40000 kg | Tire Specifications: | 12r225(Factory equipped) |
| Curb weight: | 10600 kg | Wheelbase: | 4800+1310+1310 mm |
| Anti-lock Brake System: | Yes | Number of Axes: | 3 |
| Self-adjusting Arm: | Yes | Axle: | 13T Guangdongfuhua |
| Effective Volume: | 14 m³ | Geometric Volume: | 25.13 m³ |
| Reducer: | PMP 7Y | Hydraulic Motor/oil Pump: | American Sao M100/P100 |
| Heat Sink: | Domestic made 26 liters | Water Tank: | 400L Pressure water tank |
| Mixing Tank: | Simplified: 6# Thick Q345 Wear Plate, 6# thick double head, blade 4# thick T520JJ |
Truck Frame (Girder): | Lightweight high-strength board, Web 6#, Upper wing 6#, Lower wing 10# |
| Diesel Engine: | Weifangchangxing4105 | ||
Aimix Semi Trailer Concrete Mixer Manufacturing Process:

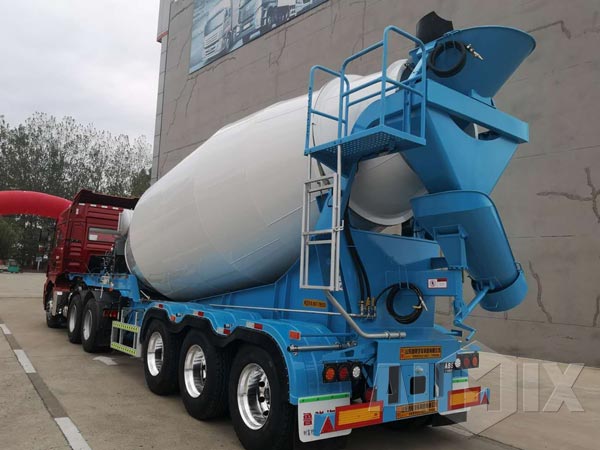

Aimix Semi Trailer Concrete Mixer Truck:
