Self loading Concrete Mixer
New Self-loading Concrete Mixer Coming!
The new type self loading mixer features a high-precision hydraulic transmission, simple operation with electronic gear control and a single joystick, a compact structure for easy transport, compatible hydraulic components for easy maintenance, and a straightforward water supply system for enhanced user convenience.

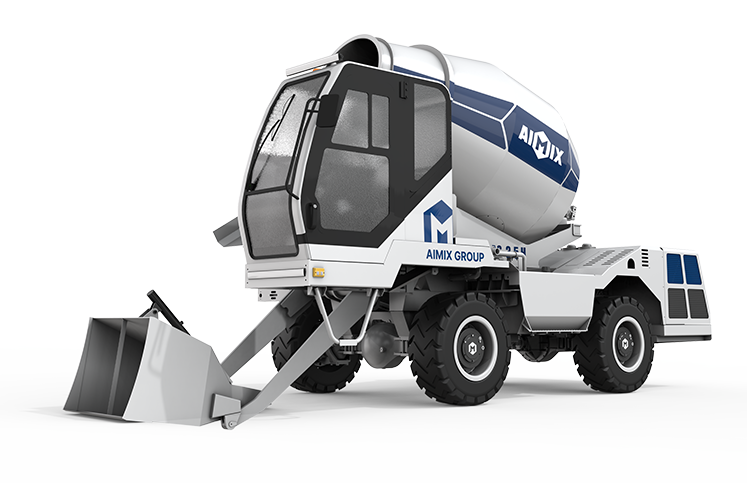

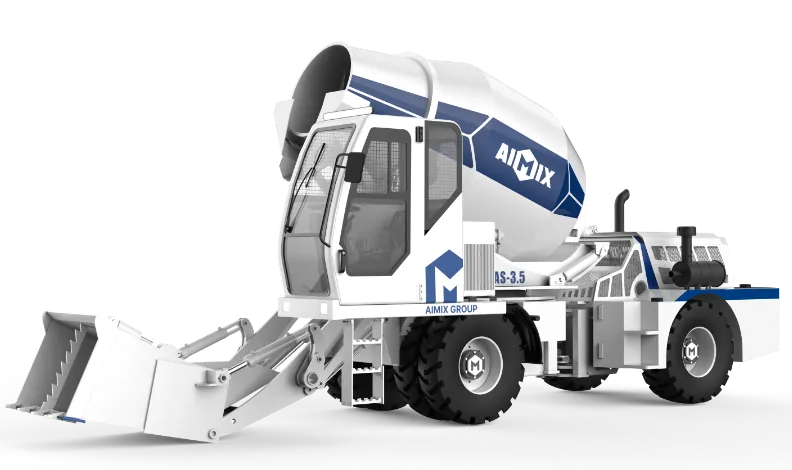

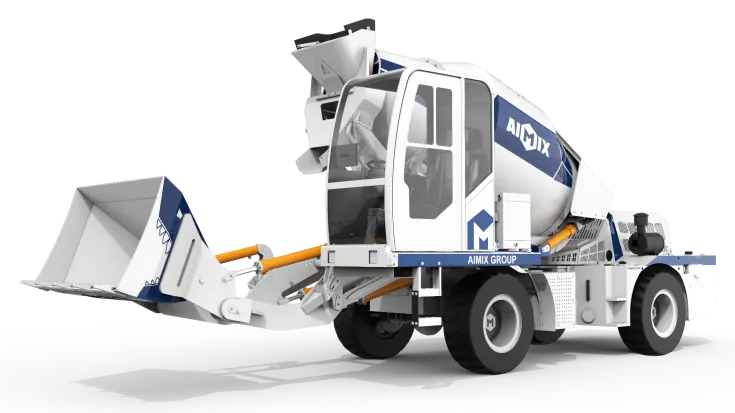

AS-3.5 Pro Self Loading Concrete Mixer Truck
Power: Diesel/Electric
Capacity(m3/h): 14m3/h
Core upgrade points：Hydraulic transmission is stable and durable. Easy to operate. Compact structure. Simple water supply system.
Different Models of the Self loading Concrete Mixer
Aimix AS1.8-6.5 cubic meter self-loading concrete mixer can be seen as a smaller mobile concrete batching plant, which is more economic & can move around. Here are our main self loading concrete mixer models:
What Types of Project Is Self Loading Concrete Mixer Used For?
Aimix self loading concrete mixer can be used for the following concrete mixing projects:
1. Repair roads, bridges, and harden pavements projects.

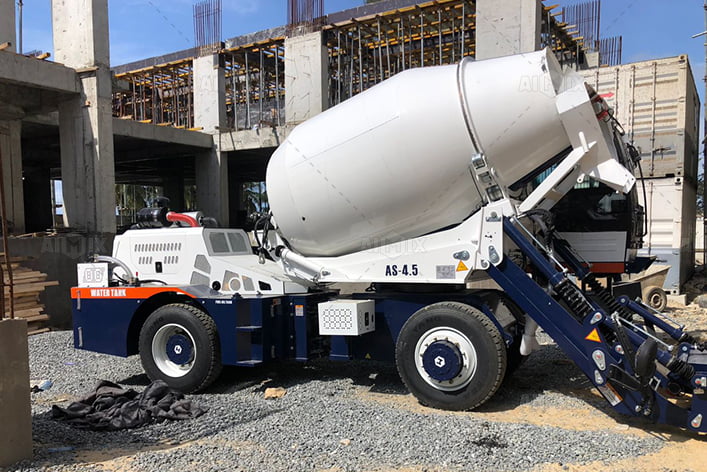

2. House construction & Building foundations.
3. Floor construction.
4. Water canals project.

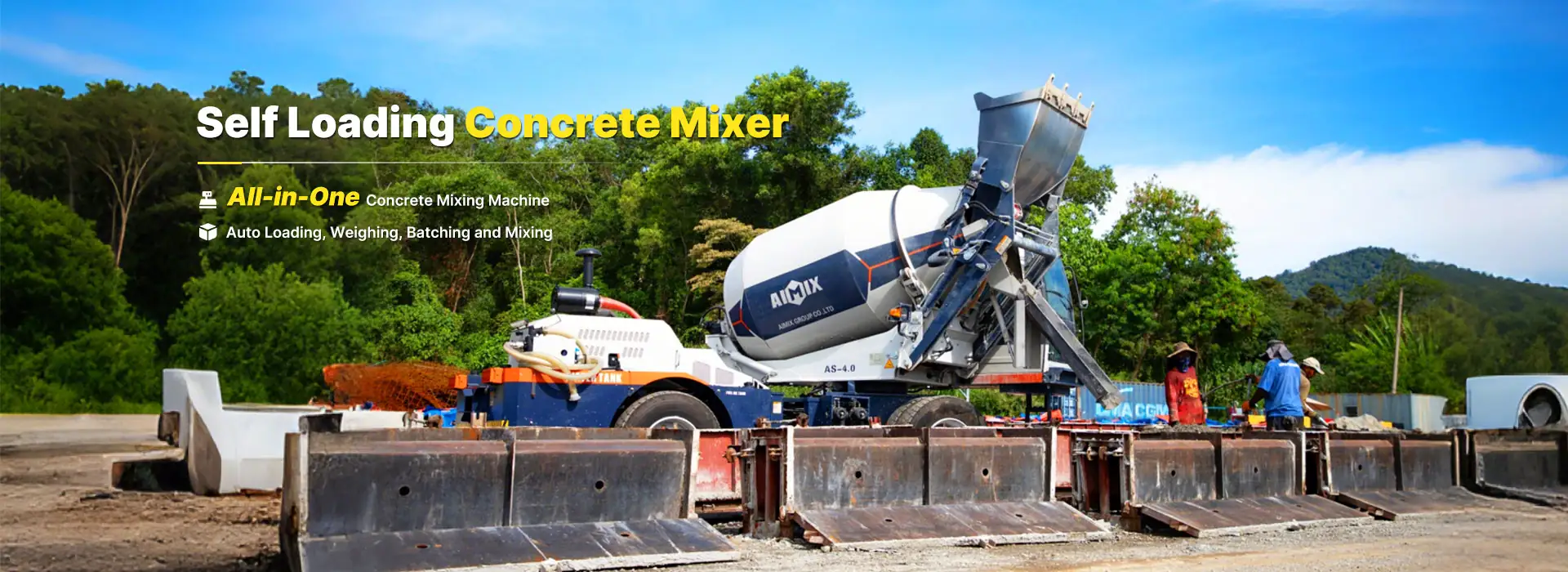

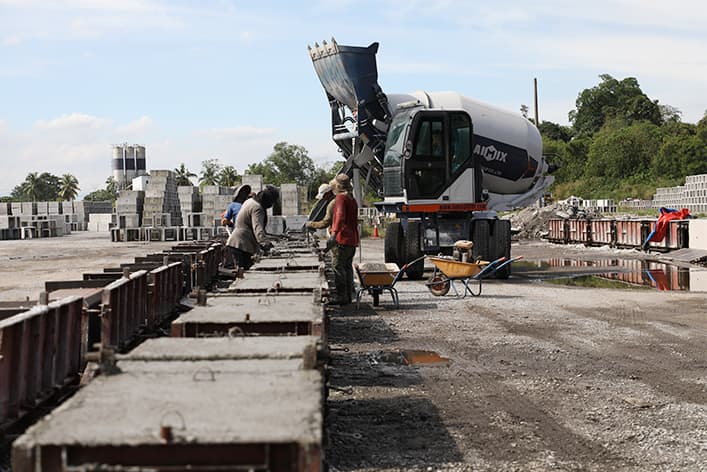

5. Precast concrete pouring project.
Technical Parameters Of Aimix Self-loading Concrete Mixer:
| AS-1.2/1.8/2.6 Self Loading Mixer | AS-3.5/4.0 Self Loading Concrete Mixer | AS-5.5/6.5 Self Loading Concrete Mixer |
|---|
| Equipment Model | AS-1.2 Self Loading Mixer Truck | AS-1.8 Self Loading Mixer Truck | AS-2.6 Self Loading Concrete Mixer truck |
| Discharge Capacity | 1.2 m³ | 1.8 m³ | 2.6 m³ |
| Engine Model | Yunnei 490 Turbo-Charged | Yuchai 4102 Turbo-Charged | Yuchai 4102 Turbo-Charged |
| Rated Power | 55 kw | 78 kw | 78 kw |
| Gear Box Model | ZL-265 Power Shift Gearbox | ZL-280 Power Shift Gearbox | ZL-280 Power Shift Transmission |
| Gear | 2 Forward 2 Back | 2 Forward 2 Back | 4 Forward 4 Back |
| Fuel Tank | 63 Liters | 75 Liters | 75 Liters |
| Total Hydraulic System Capacity | 63 Liters | 75 Liters | 75 Liters |
| Oil Tank | 16 Liters | 16 Liters | 16 Liters |
| Reducer | KY07-2-0 | HJ80-43 | HJ80-43 |
| Hydraulic Pump | CBFC 50/32 | CBGQ 2050/2032 | CBGQ 2050/2032 |
| Hydraulic Motor | BM5-125 | BM5-160 | BM5-160 |
| Water Tank | 400 L | 500 L | 500 L |
| Water Supply | Time Relay | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 6400×2550×3300 | 7300×2650×3750 | 7860×2750×4100 |
| Wheelbase (mm) | 2300 | 2600 | 2800 |
| Curb Weight (Kg) | 4185 | 6500 | 6500 |
| Drive Form | Torque Converter | Torque Converter | Torque Converter |
| Drum Rotate | 270º | 270º | |
| Max.Speed (Km/h) | 30 | 30 | |
| Maximum Grade | 30º | 30º | 30º |
| Maximum Turning Radius (mm) | 4700 | 5300 | 5300 |
| Minimum Ground Clearance (mm) | 280 | 380 | 380 |
| Equipment Model | AS-3.5 Type A Self Loading Mixer Truck | AS-4.0 Self Loading Mixer Truck |
| Discharge Capacity | 3.5 m³ | 4.0 m³ |
| Engine Model | YUCHAI 4105 Turbo-Charged | YCD4J22G |
| Rated Power | 85 kw | 85 kw |
| Gear Box Model | ZL-280 Power Shift Gearbox | ZL-280 Power Shift Gearbox |
| Gear | 2 Forward 2 Back,Front Wheels Steering | 2 Forward 2 Back,Front Wheels Steering |
| Fuel Tank | 75 L | 230 L |
| Total Hydraulic System Capacity | 75 Liters | 170 Liters |
| Oil Tank | 16 Liters | 16 Liters |
| Reducer | HJ80-43 | KY07-5-J |
| Hydraulic Pump | CBGQ 2040/2080 | Interpump |
| Hydraulic Motor | BM5-160 | HAA2FM56/61W-VTD527 |
| Water Tank | 620 L | 660 L |
| Water Supply | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 7830×2680×4170 | 7640×2870×4750 |
| Wheelbase (mm) | 2900 | 2480 |
| Curb Weight (Kg) | 7500 | 9000 |
| Drive Form | Torque Converter | Torque Converter |
| Max.Speed (Km/h) | 30 | 35 |
| Maximum Gradeability | 30º | 30º |
| Maximum Turning Radius (mm) | 5300 | 4800 |
| Minimum Ground Clearance (mm) | 380 | 330 |
| Equipment Model | AS-5.5 Self Loading Mixer Truck | AS-6.5 cbm Self Loading Mixer Truck |
| Discharge Capacity | 5.5 m³ | 6.5 m³ |
| Engine Model | FAW XICHAI 6110 Turbo-Charged | Weichai deutz 6105 Turbo-Charged |
| Rated Power | 110 kw | 92 kw |
| Gear Box Model | ZL-315 Power Shift Gearbox | ZL-315 Power Shift Gearbox |
| Gear | 2 Forward 2 Back, Front Wheels Steering | 2 Forward 2 Back |
| Fuel Tank | 180 L | 370 L |
| Total Hydraulic System Capacity | 180 Liters | 278 Liters |
| Oil Tank | 16 Liters | 16 Liters |
| Reducer | HJ80-43 | KY07-5-J |
| Hydraulic Pump | CBGQ 2050/2032 | Interpump |
| Hydraulic Motor | USA SUNNY 56 | SUNNY63 |
| Water Tank | 860 L | 1465 L |
| Water Supply | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 8450×3100×4580 | 8450×3050×4830 |
| Wheelbase (mm) | 3350 | 2850 |
| Curb Weight (Kg) | 11200 | 12520 |
| Drive Form | Torque Converter | Torque Converter |
| Drum Rotary | 270º | |
| Max.Speed (Km/h) | 42 | 40 |
| Maximum Gradeability | 30º | 30º |
| Maximum Turning Radius (mm) | 6200 | 4800 |
| Minimum Ground Clearance (mm) | 350 |
Note: Due to equipment upgrades, the parameters will be adjusted without notice.

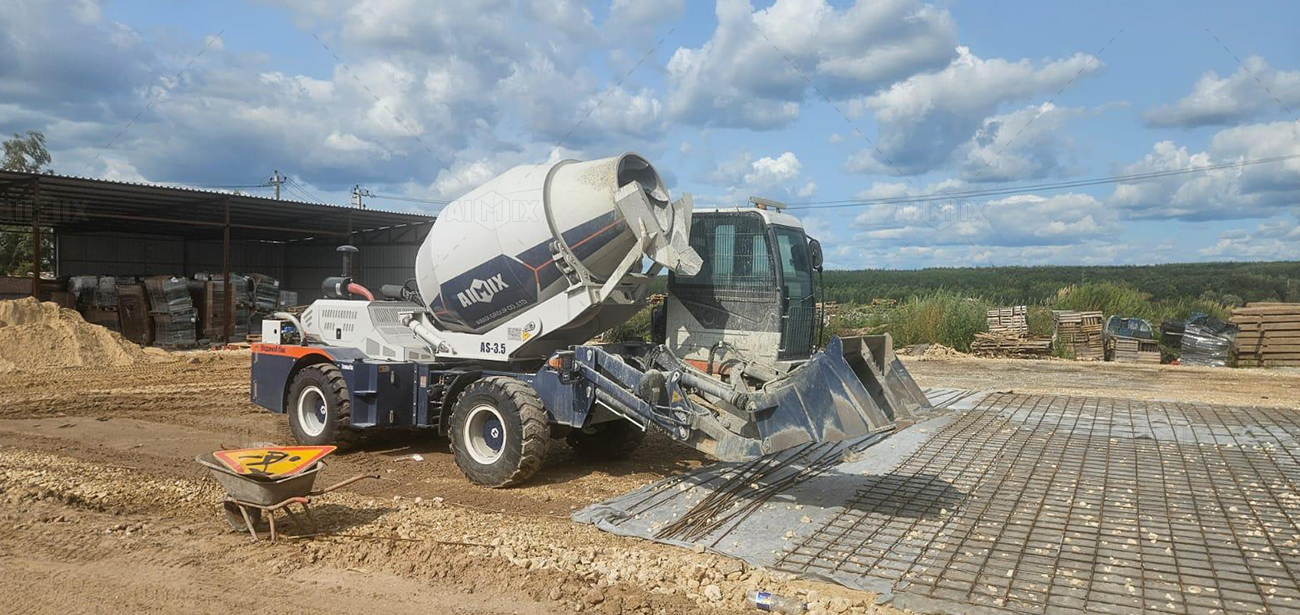

AIMIX Self Loading Concrete Mixer Construction On-site
Advanced Weighing System
Ensure weighing accuracy of concrete and get high quality concrete
Tight Turning Radius
4 wheel steering system allows maneuverability in narrow spaces and allows for a tight turning radius.
Ergonomic Design
The cabin is designed to enhance the efficiency of the operator and allow him to work for longer hours.
High Pressure Wash Gun Of The Truck
Make the truck cleaning work much easier
Mixer Drum 270 Degree Rotation
Make the concrete pouring work much convenient
High Gradeability
Highly efficient in steep inclined terrains
Aimix Cases Of Self Loading Concrete Mixer in Different Countries

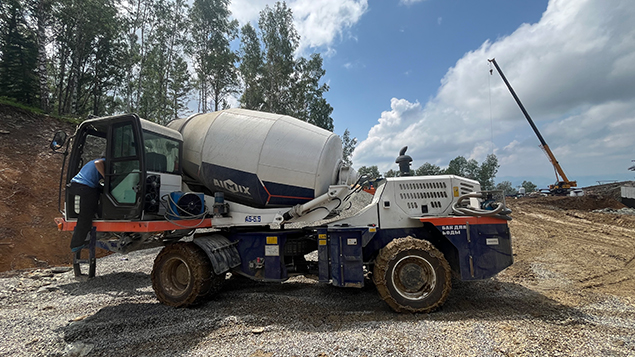

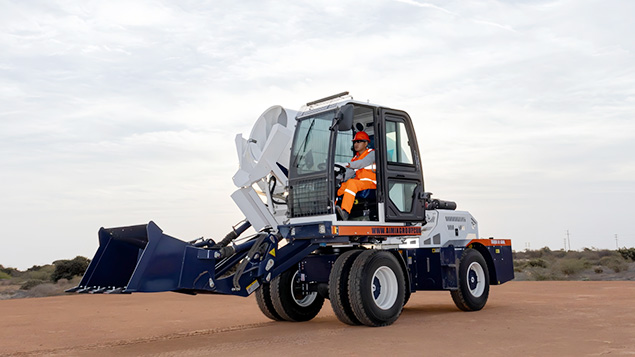

Aimix self loading concrete mixer has become increasingly popular worldwide due to their efficiency, reliability, and versatility. These plants have been exported to various countries, for example: the Philippines, Malaysia, Indonesia, Australia, Saudi Arabia, Paraguay, Peru, Chile, Tanzania, Democratic Republic of the Congo, Fiji, Papua New Guinea, Guyana, Jamaica, etc;
AS3.5 In Poland
AS3.5 In Tanzania
AS3.5 In Dominican
AS3.5 In Somali

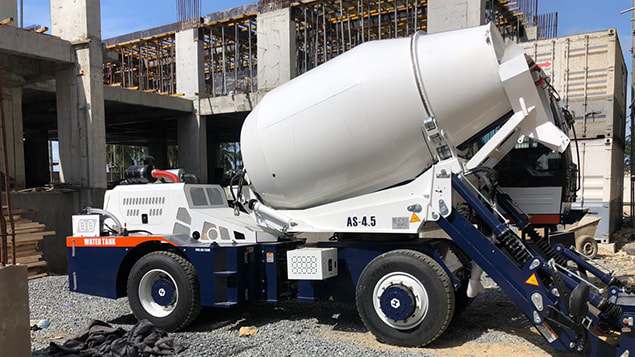

AS3.5 In Nigeria
AS3.5 In Kazakhstan
AS2.6 In Fiji
AS3.5 In Bahamas
AS3.5 In Malaysia – Building Constuction
AS4.0 In Australia

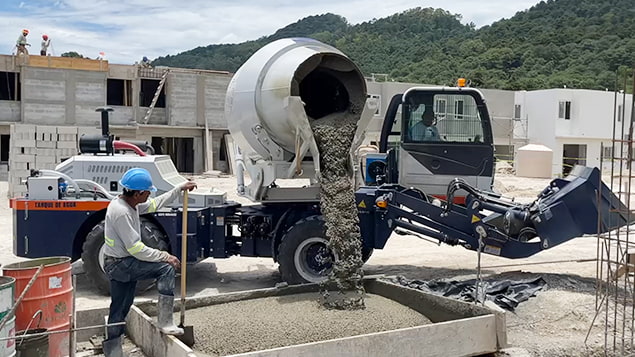

AS3.5 In Honduras-Building Construction
AS3.5 In Russia-Building Construction
AS3.5 In Honduras-Building Construction
AS3.5 In The Philippines-Road Construction
AS3.5 In Kazakhstan
FAQ
Here are some common questions and answers that customers may have regarding self loading concrete mixer:
Self-loading concrete mixer can load raw materials and mix concrete by itself. It is mainly used for small and medium projects or for repair project.
