Aimix mainly manufactures two types of concrete pumps: concrete trailer pump and concrete mixer pump. Each of these concrete pump machines has its own advantages in different concrete pumping situations. Aimix concrete pumping machines have won unanimous praise from our clients, because of high pumping efficiency and cost-effective price. Here are the details.
Concrete Trailer Pump For Sale:

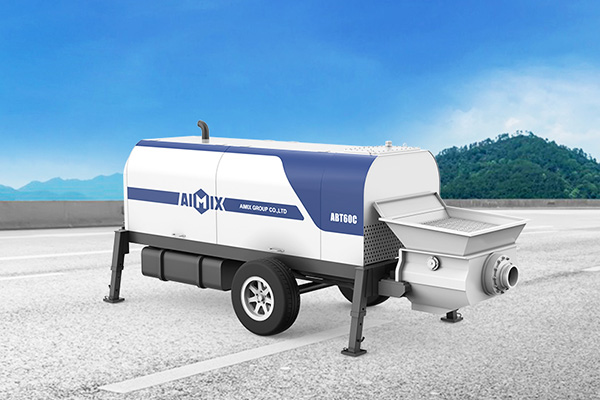

Diesel Concrete Trailer Pump
Pumping Capacity:
30 m³/h, 40 m³/h, 60 m³/h, 80 m³/h, 90 m³/h
Vertical convey distance: 120-200 m
Horizontal convey distance: 500-800 m
Max.aggregate diameter: 40-50 mm
Distribution valve type: S Valve
Diesel engine model: Weichai
Application: Especially suitable for the place where is lack of electricity or different voltages.

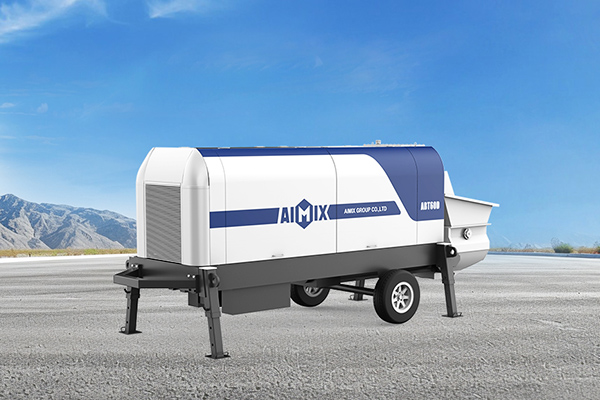

Electric Concrete Trailer Pump
Pumping Capacity:
30 m³/h, 40 m³/h, 60 m³/h, 80 m³/h, 90 m³/h
Vertical convey distance: 120-200 m
Horizontal convey distance: 500-800 m
Max.aggregate diameter: 40-50 mm
Distribution valve type: S Valve
Electrical engineering power: 45-90 kw
Application: Suitable for high-rise conveying, railway, tunnel, bridge, hydraulic power, mining and national defense.
Concrete Trailer Pump For Concrete Pumping Solutions:
Aimix concrete trailer pump can be used for many situations, conmbined with concrete batching plant, concrete mixer, concrete mixer truck and self loading concrete mixer, which makes concrete pumping more flexible and maximize its value.
Concrete Mixer Pump For Sale:
Diesel Concrete Mixer Pump
Pumping Capacity: 30 m³/h, 40 m³/h
Vertical convey distance: 120-150 m
Horizontal convey distance: 400-600 m
Max.aggregate diameter: 40-50 mm
Distribution valve type: S Valve
Diesel engine model: Weichai
Application: Especially suitable for the place where is lack of electricity or different voltages.
Electric Concrete Mixer Pump
Pumping Capacity: 30 m³/h, 40 m³/h
Vertical convey distance: 120 m
Horizontal convey distance: 300-500 m
Max.aggregate diameter: 40-50 mm
Distribution valve type: S Valve
Electrical engineering power: 37-45 kw
Application: This series concrete pump with mixer combines the functions of mixing and high pressure pumping all-in-one.
Concrete Mixer Pump For Concrete Pumping Solution:
Aimix concrete mixer pump combined mixing and pumping of concrete together, which can save labors and reduce labor intensity. It can be applied to varieties of construction projects to help you expand business scope. Concrete mixer pump can transport concrete to places that laborers or tractors have no access to, which is undoubtedly a good choice for the construction of civil house, water conservancy, rural roads and ground works.
Concrete Boom Pump For Sale:
Concrete Boom Pump For Sale
Height: 26m, 30m, 33m, 38m. 47m, 50m, 58m
Horizontal Height: 21.6m – 53.5m
Concrete Output: 100 – 170m³/h
Features:
1. precise placement of concrete,
2. high pumping capacity.
Application: used to transport concrete to construction sites and other locations.
How To Choose A Suitable Concrete Pump For Your Project?
- Conveying distance &
conveying height - Max aggregate
diameter. - Source of power:
Diesel or electric - Concrete pumping
capacity per hour
1. Because the pressure of the concrete cylinder determines the conveying distance and conveying height. Once you have confirmed the pumping distance and height, we will determine the concrete cylinder pressure for your concrete pump.
2. At the same time, the cylinder diameter of the concrete cylinder limits the particle size of the aggregate. Once an unmatched cylinder diameter is selected, equipment failure will occur, and an excessively large aggregate particle size may cause pipeline blockage.
3. Generally, the actual concrete pumping volume of the concrete pump will be slightly lower than the theoretical concrete pumping volume, so we need to know your actual pumping volume.
4. The power situation determines which type of engine you should choose. Generally, in areas with power shortages, we recommend clients use diesel engine concrete pumps.
2. It is very important that the after-sales service team can be timely contacted and solve your problem rapidly if you encounter any operational problems in the later period. So you should consider if your manufacturer has an after-sales service team as well.
3. Localized service teams and overseas warehouses are also necessary. After the equipment has been used for a period of time, some wearing parts will need to be replaced. If the manufacturer can arrange overseas warehouses locally and arrange for professionals to replace wearing parts and maintain equipment in time for you, it will greatly facilitate your later use and prolong the service life of the equipment.
Aimix Concrete Pump Cases:
ABT40C Concrete Trailer Pump for Construction Project in the Philippines
Brief introduction: Our Manila client needs a concrete pump for his 2-3 floors home project. He was looking for a 30 m³/h concrete pump at first. Considering his project requirement, we recommend him this ABT40C concrete mixer pump. Not only because it meets our client’s needs, but also cost effective in price & save labors while operating. Our Philippines client spoke highly of Aimix after-sales service. Learn More
Aimix ABT30C Diesel Concrete Trailer Pump Put Into Production In Indonesia
Brief introduction: Our 30 m³/h diesel engine concrete trailer pump has been delivered to local work-site and was put into concrete pumping project. As our Indonesian clients’ feedback, it has stable and wonderful performance in concrete pumping. Our Jayapura client ordered ABT30C concrete trailer pump for hotel construction project in December 2023. He has bought ready mix concrete from local supplier and send concrete by transit mixer, then use concrete trailer pump for concrete pumping. Learn More
Aimix Concrete Trailer Pump & Self Loading Concrete Mixer In Uzbekistan
Brief introduction: Our UZ clients have both road and factory construction projects, so the work sites changed frequently. As for their requirement, they need high quality concrete production and far pumping distance, we suggest this ABT60C diesel engine concrete trailer pump and AS-4.0 self loading concrete mixer combination for them. This combination can move flexible and produce high quality concrete and pumping it to its destination. They had been taken into concrete production and pumping now. Our Uzi clients spoke highly of Aimix high quality and good after-sales service. Learn More
More Cases of Aimix Concrete Pumps:
FAQs of Aimix Concrete Pump:
Step 2: Pump wet motor;
Step 3: Pump concrete.
The detail operation manual will send together with your machine.
Step 1:Pump motor
Step 2:Pump cement paste
Step 3: Put into the cleaning ball, and pump water, until fresh water flowed out
2. Save labor cost.
3. Convenient to move around.
4. Low cost but with higher efficiency.
5. Pump speed can be adjusted to meet needs of various working conditions.
