PLD Concrete Batching Machine is a kind of front-desk automatic batching equipment, working with the mixer. This concrete batching machine can complete automatically the batching process of sand, stone, cement etc. 3~6 kinds of material according to the cement proportion designed by user. This concrete batching machine can batch materials for one or two mixer, so effectively improves the working efficiency.

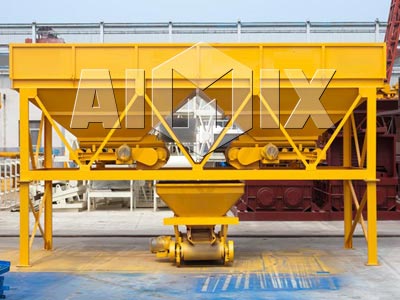

Weighing Hopper Capacity: 560L
Aggregate Bin Capacity: 2X0.95m3
Productivity: 30m3/h
Feeding Height: 2300mm
Power: 3×4kw

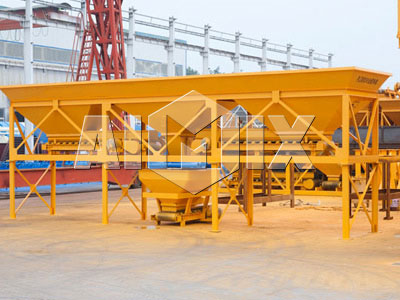

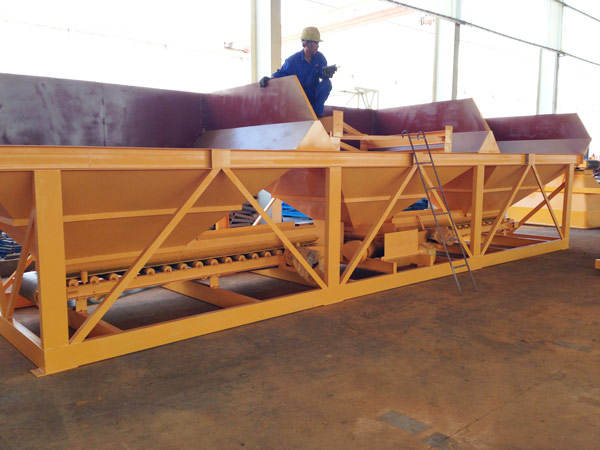

Weighing Hopper Capacity: 800L
Aggregate Bin Capacity: 2/3X3.2m3
Productivity: 48m3/h
Feeding Height: 2840mm
Power: 3/4×4kw

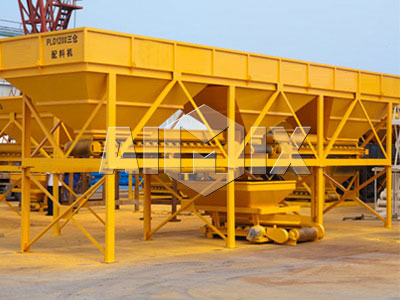

Weighing Hopper Capacity: 1200L
Aggregate Bin Capacity: 2/3/4×7.3m3
Productivity: 60m3/h
Feeding Height: 2656/2981mm
Power: 3/4/5×4kw

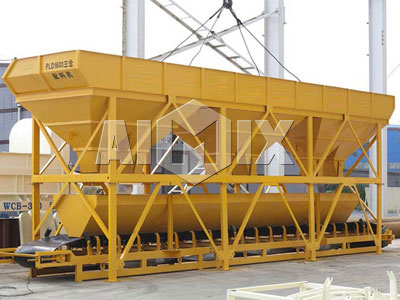

Weighing Hopper Capacity: 1600L
Aggregate Bin Capacity: 2/3/4×8.38m3
Productivity: 80m3/h
Feeding Height: 2944/3050mm
Power: 3/4/5×4kw
If you need other types and capacity aggregate batching machine, our professional engineers can design according to your demand and Provide free installation, maintenance and other services. Please click Contact us.
Technical Parameters Of Aimix Aggregate Batching Machine
| Model | PLD560 | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Kinds of Aggregate | 2 | 2/3 | 2/3/4 | 2/3/4 | 3/4 | 3/4 | 4 |
| Weighing Hopper Capacity | 560L | 800L | 1200L | 1600L | 2400L | 3200L | 4800L |
| Aggregate Bin Capacity | 2X0.95m3 | 2/3X3.2m3 | 2/3/4X7.3m3 | 2/3/4X8.38m3 | 3/4X8.38m3 | 3/4X15.6m3 | 4X25m3 |
| Productivity | 30m3/h | 48m3/h | 60m3/h | 80m3/h | 120m3/h | 160m3/h | 280m3/h |
| Feeding Height | 2300mm | 2840mm | 2656/2981mm | 2944/3050mm | 3050mm | 4130mm | 4200mm |
| Batching Accuracy | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power | 3X4kw | 3/4X4kw | 3/4/5X4kw | 3/4/5X4kw | 4/5X5kw | 4/5X5kw | 4X7.5kw |
Features Of Aimix Aggregate Batching Machine
PLD Concrete Batching Machine adopt electronic weighing, computer control, digital display. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, easy operation, reasonable design, compact structure and long service life. PLD Concrete Batching Machine is widely used in all kinds of large and medium-sized construction project and concrete batching plant.
1. 40 Years’ experience
2. With CE,ISO,IAF,SGS Certificates
3. Electric components are Schneider Brand (France)
4. Control system is Omron, Siemens Brand
5. Accept the OEM
